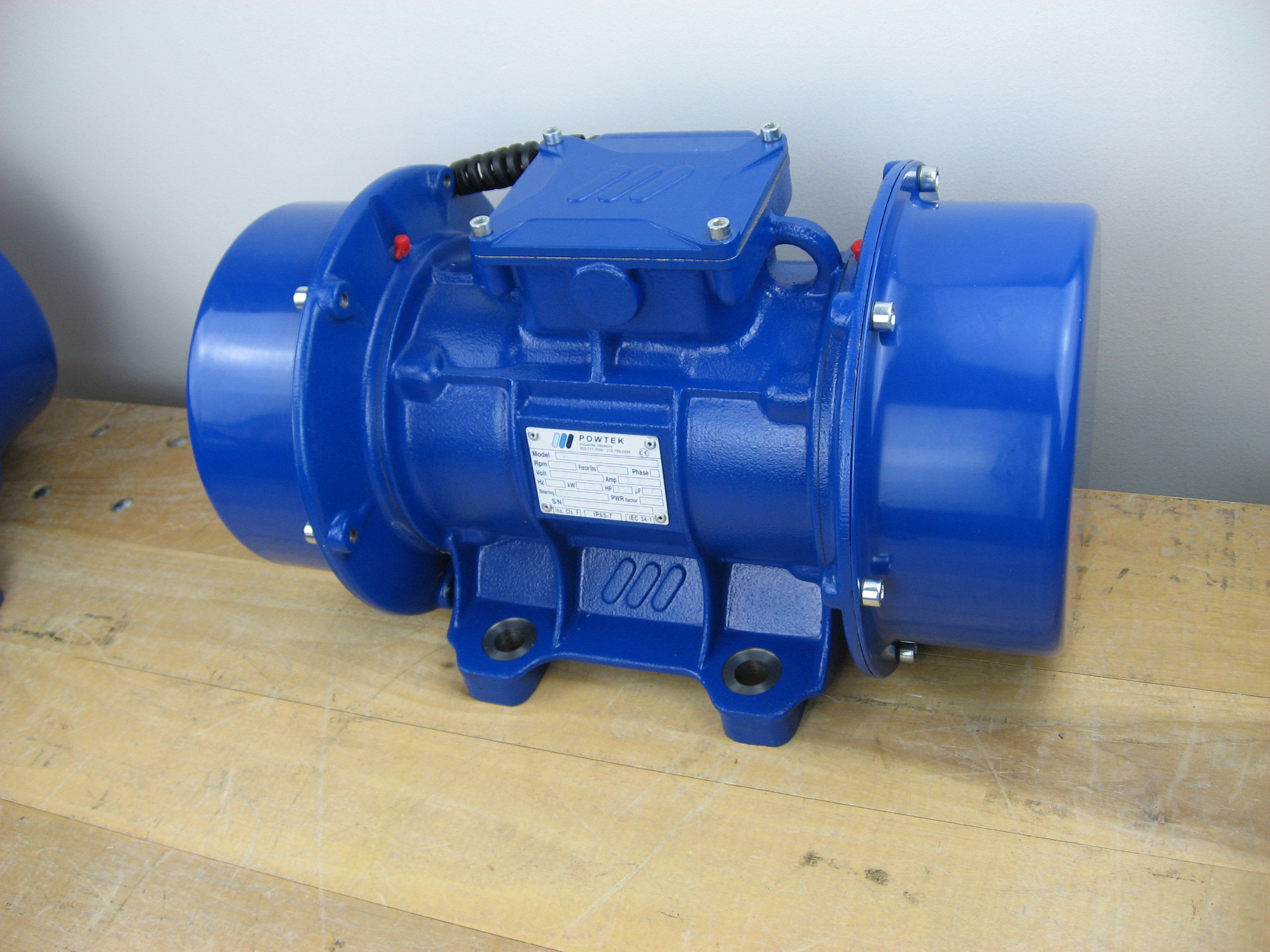

            1800 RPM Motors

            Key Characteristics vs other rotary electric vibrators: High RPM, best for bin activators, vibratory screens, and bulk bag unloaders.

            General Characteristics: Rugged, energy efficient, low noise, and low maintenance.

            Energy Source: Electric.

            Force Output: Radial.

            Force Output Range: 174 to 24,000 lbs.

            Usage Recommendation: Continuous operations at 100% force when considering energy usage and life.

            Description: A rotating motor with oversized shaft, bearings and eccentric weights on the shaft generates centrifugal force. 1800 RPM is constant on most models. Force output is adjusted by changing the unbalance of the weights.

            Product Applications: Material flow for bin activators, screeners with product less than ¾” diameter, and bulk bag unloading.


            All Rotary Electric Vibrators must be used with an on/off motor control with overload protection and proper mounting per operator manual instructions.

            • 115V vibrators usually include On/Off Control Box bundles with purchase of vibrator.
            • 230V and 460V vibrators do not include control box options as a bundle, however special control boxes can be ordered seperately.



            * Click on the model number below to view accessories specific to that model *

            Category Sort Order
            Model Price
            Part #: 601340C
            Max Force: 96
            Manufacturer: Italvibras
            $528.00 Quantity:
            Part #: 601340$
            Max Force: 96
            Manufacturer: Italvibras
            $1199.00 Quantity:
            Part #: 601373C
            Max Force: 1302
            Manufacturer: Italvibras
            $859.00 Quantity:
            Part #: 601373$
            Max Force: 1302
            Manufacturer: Italvibras
            $2202.00 Quantity:
            Part #: 601408C
            Max Force: 1672
            Manufacturer: Italvibras
            $1075.00 Quantity:
            Part #: 601408$
            Max Force: 1672
            Manufacturer: Italvibras
            $2259.00 Quantity:
            Part #: 601341C
            Max Force: 167
            Manufacturer: Italvibras
            $540.00 Quantity:
            Part #: 601341$
            Max Force: 167
            Manufacturer: Italvibras
            $1262.00 Quantity:
            Part #: 601524C
            Max Force: 2160
            Manufacturer: Italvibras
            $1589.00 Quantity:
            Part #: 601366C
            Max Force: 246
            Manufacturer: Italvibras
            $594.00 Quantity:
            Part #: 601366$
            Max Force: 246
            Manufacturer: Italvibras
            $1230.00 Quantity:
            Part #: 601217C
            Max Force: 3188
            Manufacturer: Italvibras
            $1797.00 Quantity:
            Part #: 601219C
            Max Force: 3865
            Manufacturer: Italvibras
            $2073.00 Quantity:
            Part #: 601267C
            Max Force: 4473
            Manufacturer: Italvibras
            $2157.00 Quantity:
            Part #: 601367C
            Max Force: 471
            Manufacturer: Italvibras
            $705.00 Quantity:
            Part #: 601367$
            Max Force: 471
            Manufacturer: Italvibras
            $1264.00 Quantity:
            Part #: 601372C
            Max Force: 904
            Manufacturer: Italvibras
            $810.00 Quantity:
            Part #: 601372$
            Max Force: 904
            Manufacturer: Italvibras
            $1381.00 Quantity:
            Part #: VE1/18/150
            Max Force: 174
            Manufacturer: Powtek
            $450.00 Quantity:
            Part #: VE1/18/150 w/ Control Box
            Max Force: 174
            Manufacturer: Powtek
            $600.00 Quantity:
            Part #: VE1/18/450
            Max Force: 450
            Manufacturer: Powtek
            $580.00 Quantity:
            Part #: VE1/18/450 w/ Control Box
            Max Force: 450
            Manufacturer: Powtek
            $740.00 Quantity:
            Part #: VE3/18/10000
            Max Force: 10932
            Manufacturer: Powtek
            $4500.00 Quantity:
            Part #: VE3/18/1200
            Max Force: 1280
            Manufacturer: Powtek
            $680.00 Quantity:
            Part #: VE3/18/150
            Max Force: 174
            Manufacturer: Powtek
            $394.00 Quantity:

            38 product(s) found.

            Page 1 of 2

            <<  1  2  >>
