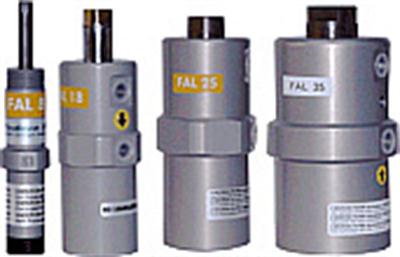

                Extended Piston

                Key Characteristics vs other piston vibrators: Oscillating piston end exposed to allow attachment of weights, tables, or screeners.

                General Characteristics: Moderate life, rugged construction, simulates a blow from a hammer.

                Energy Source: Air Powered/Pneumatic.

                Force Output: Linear.

                Force Output Range: 5 to 520 lbs.

                Usage Recommendation: Continuous duty when considering energy usage and life.

                Description: One end of piston extends through cylinder allowing multiple weights to be attached thereby changing amplitude output. Amplitude can be controlled independent of frequency. Non-impacting piston does not strike an end plate, oscillating within an aluminum or iron housing. Frequency and force can be adjusted by varying the air pressure.

                Product Applications: Hoppers, silos, feeders, tables, and screeners where noise is a factor and precision adjustment of force and amplitude are important.



                * Click on the model number below to view accessories specific to that model *

                Category Sort Order
                Model Price
                Model: FAL 18
                Part #: FAL 18
                Max Force: 55
                Manufacturer:
                $440.00 Quantity:
                Model: FAL 25
                Part #: FAL 25
                Max Force: 110
                Manufacturer:
                $640.00 Quantity:
                Model: FAL 35
                Part #: FAL 35
                Max Force: 200
                Manufacturer:
                $930.00 Quantity:
                Model: FAL 8
                Part #: FAL 8
                Max Force: 9
                Manufacturer:
                $300.00 Quantity:
                Model: VTL 15
                Part #: VTL 15
                Max Force: 16
                Manufacturer: Powtek
                $280.00 Quantity:
                Model: VTL 16
                Part #: VTL 16
                Max Force: 19
                Manufacturer: Powtek
                $610.00 Quantity:
                Model: VTL 25
                Part #: VTL 25
                Max Force: 50
                Manufacturer: Powtek
                $760.00 Quantity:
                Model: VTL 40
                Part #: VTL 40
                Max Force: 100
                Manufacturer: Powtek
                $950.00 Quantity:
                Model: VTL 55
                Part #: VTL 55
                Max Force: 250
                Manufacturer: Powtek
                $1030.00 Quantity:
                Model: VTL 85
                Part #: VTL 85
                Max Force: 250
                Manufacturer: Powtek
                $2350.00 Quantity:

                10 product(s) found.
