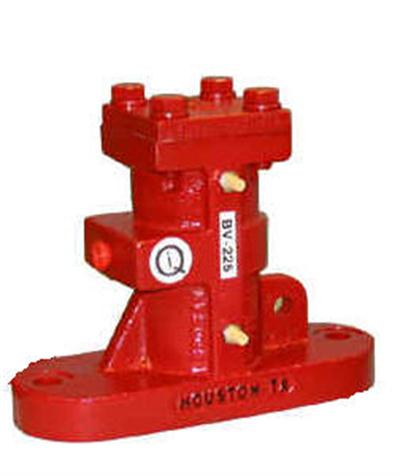

              Quiet Impacting

              Key Characteristics vs other piston vibrators: Rubber tipped piston reduces noise up to 20% vs impacting piston type vibrators, maintains high force output.

              General Characteristics: Moderate life, rugged construction, simulates a blow from a hammer.

              Energy Source: Air Powered/Pneumatic.

              Force Output: Linear.

              Force Output Range: 178 to 1,900 lbs.

              Usage Recommendation: Intermittent operation (4 – 8 hours per day)

              Description: Rubber tipped piston delivers impact forces close to impacting vibrators and reduces noise by up to 20% depending on model. A steel piston reciprocates in a cylinder housing at high frequencies and impacts on harden end plates with rubber tip. This simulates the blows of a hammer and causes any object attached to the vibrator to vibrate at its natural frequency. Internal porting allows the piston to reciprocate without the need for external valves other than to control air supply. Frequency and force can be adjusted by varying the air pressure.

              Product Applications: Hoppers, silos, feeders, tables, and screeners where noise is a factor and precision adjustment of force and amplitude are important.



              * Click on the model number below to view accessories specific to that model *

              Category Sort Order
              Model Price
              Model: BV-112 QI
              Part #: 1113-0000
              Max Force: 178
              Manufacturer: Houston
              $145.00 Quantity:
              Model: BV-150 QI
              Part #: 1123-0000
              Max Force: 342
              Manufacturer: Houston
              $191.00 Quantity:
              Model: BV-225 QI
              Part #: 1143-0000
              Max Force: 635
              Manufacturer: Houston
              $274.00 Quantity:
              Part #: 1153-0010
              Max Force: 1182
              Manufacturer: Houston
              $396.00 Quantity:

              4 product(s) found.
