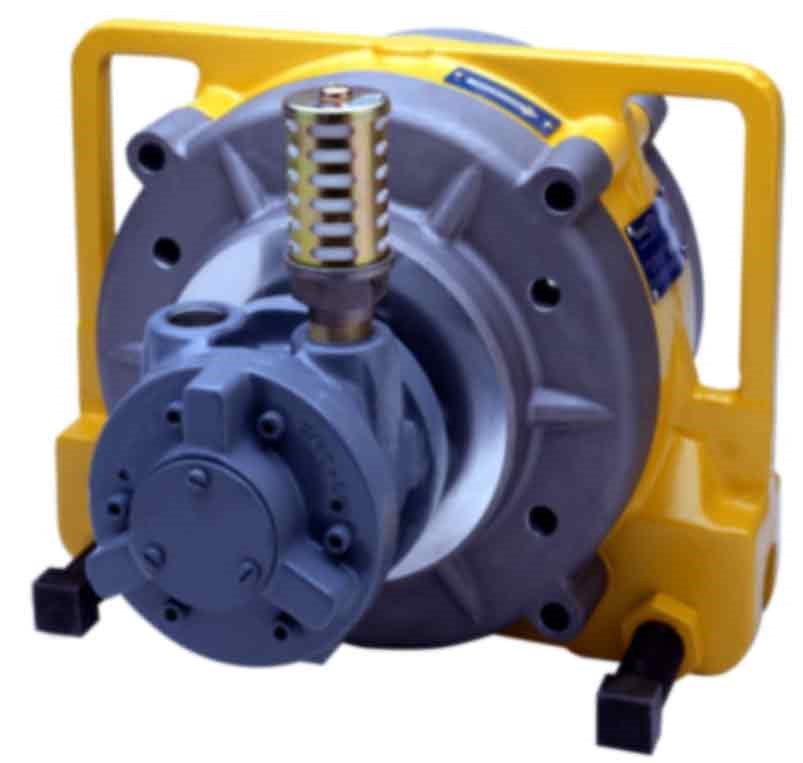

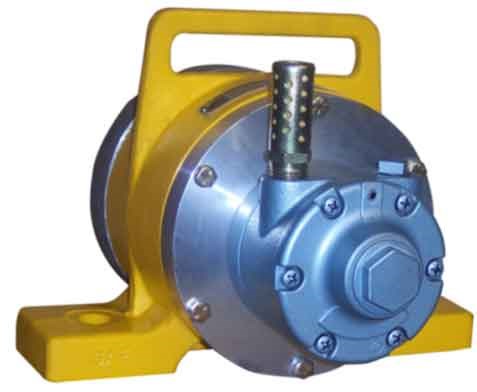

                Global Design Series Pneumatic Rotary Vibrators

                Characteristics: Powerful, heavy, and durable. High amplitude, moderate frequency.

                Energy Source: Pneumatic / Air-Driven Motor (attached to vibrator).

                Force Output: Radial.

                Force Output Range: 5,000 – 26,000 lbs.

                Usage Recommendation: Intermittent operation 4 – 8 hours per day when considering energy usage and life.

                Description: Attached pneumatic motor utilizes a unique drive coupling to prolong the life of the motor and maintain the seal despite vibrations.  Requires filter regulator and lubricator in the air supply.  All bearings are greased and sealed to keep contaminants out.  Bi-rotational pneumatic motor is instantly reversible.  Stalling or overloading should not damage device.

                Product Applications: Wide range of applications in material flow where electric or hydraulic power is not available.

                Choose between the following;

                • 3.0 Models / 41-69 CFM and 40-80 psi, force (lbs) 820 - 4,350
                • 4.5 Models / 35-62 CFM and 40-80 psi, force (lbs) 2,660 - 4,320
                • 7.0 Models / 55-114 CFM and 40-80 psi, force (lbs) 5,450 - 18,110

                Click on Specifications for more information.



                * Click on the model number below to view accessories specific to that model *

                Category Sort Order
                Model Price
                Part #: 534015
                Max Force: 1360
                Manufacturer: Global
                $1669.00 Quantity:
                Part #: 534020
                Max Force: 1720
                Manufacturer: Global
                $1669.00 Quantity:
                Part #: 534025
                Max Force: 2030
                Manufacturer: Global
                $1669.00 Quantity:
                Part #: 534030
                Max Force: 2300
                Manufacturer: Global
                $1669.00 Quantity:
                Part #: 534040
                Max Force: 3040
                Manufacturer: Global
                $1669.00 Quantity:
                Part #: 534050
                Max Force: 3740
                Manufacturer: Global
                $1669.00 Quantity:
                Part #: 534060
                Max Force: 4350
                Manufacturer: Global
                $1669.00 Quantity:
                Part #: 554010
                Max Force: 4320
                Manufacturer: Global
                $1939.00 Quantity:
                Part #: 554011
                Max Force: 4320
                Manufacturer: Global
                $2009.00 Quantity:
                Part #: 554006
                Max Force: 3450
                Manufacturer: Global
                $1899.00 Quantity:
                Part #: 554008
                Max Force: 4200
                Manufacturer: Global
                $1899.00 Quantity:
                Part #: 586012
                Max Force: 5450
                Manufacturer: Global
                $3495.00 Quantity:
                Part #: 586018
                Max Force: 14910
                Manufacturer: Global
                $3545.00 Quantity:
                Part #: 586025
                Max Force: 18110
                Manufacturer: Global
                $3595.00 Quantity:
                Part #: 586050
                Max Force: 26870
                Manufacturer: Global
                $3665.00 Quantity:
                Part #: 544010
                Max Force: 4320
                Manufacturer: Global
                $1749.00 Quantity:
                Part #: 544011
                Max Force: 4320
                Manufacturer: Global
                $1879.00 Quantity:
                Part #: 544006
                Max Force: 3450
                Manufacturer: Global
                $1729.00 Quantity:
                Part #: 544008
                Max Force: 4200
                Manufacturer: Global
                $1729.00 Quantity:
                Part #: 576012
                Max Force: 5450
                Manufacturer: Global
                $3365.00 Quantity:
                Part #: 576018
                Max Force: 14910
                Manufacturer: Global
                $3415.00 Quantity:
                Part #: 576025
                Max Force: 18110
                Manufacturer: Global
                $3465.00 Quantity:
                Part #: 576050
                Max Force: 26870
                Manufacturer: Global
                $3535.00 Quantity:

                23 product(s) found.
