                    Rotary Hydraulic

                    Characteristics: High amplitude, rugged, energy efficient, heavy, and versatile.

                    Energy Source: Hydraulic Motor (attached to vibrator).

                    Force Output: Radial.

                    Force Output Range: 141 – 35,000 lbs.

                    Usage Recommendation: 4 – 8 hours per day when considering energy usage and life.

                    Description: Attached hydraulic motor utilizes a unique drive coupling to prolong the life of the motor and maintain the seal despite vibrations.  All bearings are greased and sealed to keep contaminants out.  Bi-rotational pneumatic motor is instantly reversible.  Stalling or overloading should not damage device. Easy to maintain and repair.  Force and frequency are easily adjusted by changing the flow of hydraulic oil or adjusting weights.

                    Product Applications: Wide range of applications in material flow where electric or pneumatic power is not available.

                    Choose between the following;

                    • C2 Models; Force (lbs) 141-1,000. Weight (lbs) 14
                      • 2HC Motor; GPM Flow 1.5-2.5
                    • C3 Models; Force (lbs) 380-4,182. Weight (lbs) 40
                      • 2HC Motor; GPM Flow 1.7-2.8
                      • 5HC Motor; GPM Flow 5-8.4
                    • D4.5 or CC4.5 Models; Force (lbs) 1,530-7,100.  Weight (lbs) 49 or 56 respectively
                      • 2HC Motor; GPM Flow 1.7-2.8
                      • 5HC Motor, GPM Flow 5-8.4

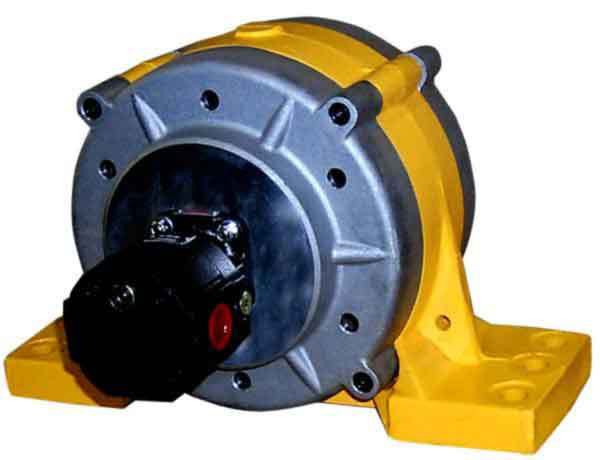

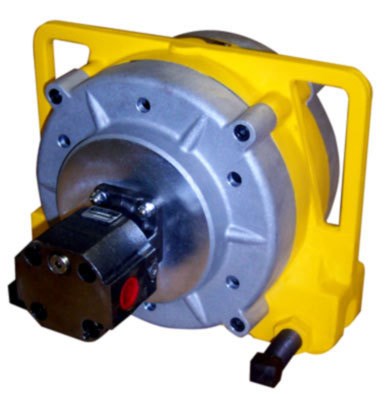

                    • D7 or CC7 Models; Force (lbs) 3,070-35,500.  Weight (lbs) 98 or 90 respectively
                      • 8 HC Motor; GPM Flow 9.1-15.1

                    Use our FLOPRO© VIBRATOR SELECTOR for instant online recomendations based on your hopper dimensions and product type.




                    Click on Specifications for more information.



                    * Click on the model number below to view accessories specific to that model *

                    Category Sort Order
                    Model Price
                    Part #: 531014
                    Max Force: 1022
                    Manufacturer: Global
                    $625.00 Quantity:
                    Part #: 532015
                    Max Force: 1070
                    Manufacturer: Global
                    $1029.00 Quantity:
                    Part #: 535015
                    Max Force: 1070
                    Manufacturer: Global
                    $1029.00 Quantity:
                    Part #: 532020
                    Max Force: 1420
                    Manufacturer: Global
                    $1029.00 Quantity:
                    Part #: 535020
                    Max Force: 1420
                    Manufacturer: Global
                    $1029.00 Quantity:
                    Part #: 532025
                    Max Force: 1780
                    Manufacturer: Global
                    $1029.00 Quantity:
                    Part #: 535025
                    Max Force: 1780
                    Manufacturer: Global
                    $1029.00 Quantity:
                    Part #: 532030
                    Max Force: 2130
                    Manufacturer: Global
                    $1029.00 Quantity:
                    Part #: 535030
                    Max Force: 2130
                    Manufacturer: Global
                    $1029.00 Quantity:
                    Part #: 532060
                    Max Force: 4260
                    Manufacturer: Global
                    $1029.00 Quantity:
                    Part #: 535060
                    Max Force: 4260
                    Manufacturer: Global
                    $1029.00 Quantity:
                    Part #: 555010
                    Max Force: 7100
                    Manufacturer: Global
                    $1349.00 Quantity:
                    Part #: 555011
                    Max Force: 7100
                    Manufacturer: Global
                    $1429.00 Quantity:
                    Part #: 555006
                    Max Force: 4260
                    Manufacturer: Global
                    $1309.00 Quantity:
                    Part #: 555008
                    Max Force: 5680
                    Manufacturer: Global
                    $1309.00 Quantity:
                    Part #: 588012
                    Max Force: 8520
                    Manufacturer: Global
                    $2550.00 Quantity:
                    Part #: 588018
                    Max Force: 12780
                    Manufacturer: Global
                    $2600.00 Quantity:
                    Part #: 588025
                    Max Force: 17750
                    Manufacturer: Global
                    $2650.00 Quantity:
                    Part #: 588050
                    Max Force: 35500
                    Manufacturer: Global
                    $2720.00 Quantity:
                    Part #: 545010
                    Max Force: 7100
                    Manufacturer: Global
                    $1159.00 Quantity:
                    Part #: 545011
                    Max Force: 7100
                    Manufacturer: Global
                    $1249.00 Quantity:
                    Part #: 545006
                    Max Force: 4260
                    Manufacturer: Global
                    $1129.00 Quantity:
                    Part #: 545008
                    Max Force: 5680
                    Manufacturer: Global
                    $1129.00 Quantity:
                    Part #: 578012
                    Max Force: 8520
                    Manufacturer: Global
                    $2500.00 Quantity:
                    Part #: 578018
                    Max Force: 12780
                    Manufacturer: Global
                    $2550.00 Quantity:

                    27 product(s) found.
