              Impacting Piston Vibrator

              Key Characteristics vs other piston vibrators: Simulates a high frequency hammer, transfers the maximum force to its mount. Air usage is conservative. Noise levels are high.

              General Characteristics: Moderate life, rugged construction, simulates a blow from a hammer.

              Energy Source: Air Powered/Pneumatic.

              Force Output: Linear.

              Force Output Range: 190 to 9085 lbs.

              Usage Recommendation: Intermittent operation (4 – 8 hours per day)

              Description: A steel piston reciprocates in a cylinder housing at high frequencies and impacts on harden end plates. This simulates the blows of a hammer and causes any object attached to the vibrator to vibrate at its natural frequency. Internal porting allows the piston to reciprocate without the need for external valves other than to control air supply. Frequency and force can be adjusted by varying the air pressure.

              Product Applications: Hopper trailers, dump trailers, coal bunkers, silos, pipelines, and feed hoppers.



              * Click on the model number below to view accessories specific to that model *

              Category Sort Order
              Model Price

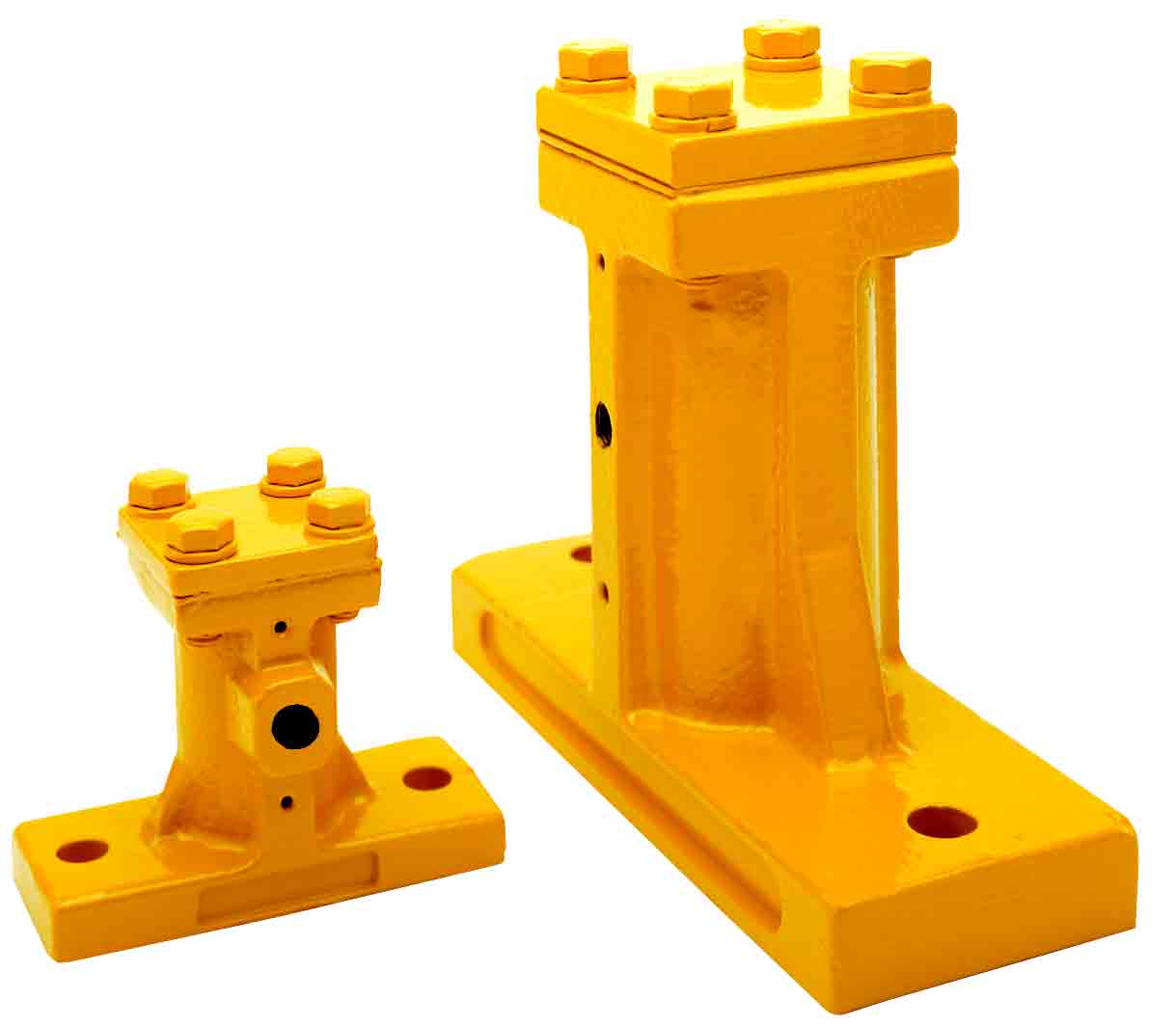

              Model: P1 IM
              Part #: 760010
              Max Force: 178
              Manufacturer: Global
              $169.00 Quantity:
              Part #: 760012
              Max Force: 361
              Manufacturer: Global
              $207.00 Quantity:
              Part #: 760016
              Max Force: 475
              Manufacturer: Global
              $287.00 Quantity:
              Model: P2 IM
              Part #: 760020
              Max Force: 640
              Manufacturer: Global
              $308.00 Quantity:
              Model: P3 IM
              Part #: 760030
              Max Force: 1558
              Manufacturer: Global
              $545.00 Quantity:
              Model: P4 IM
              Part #: 760040
              Max Force: 2229
              Manufacturer: Global
              $1184.00 Quantity:
              Part #: 700010
              Max Force: 1250
              Manufacturer: Global
              $155.00 Quantity:
              Part #: 700012
              Max Force: 2400
              Manufacturer: Global
              $162.00 Quantity:
              Part #: 700015
              Max Force: 3600
              Manufacturer: Global
              $171.00 Quantity:
              Part #: 700020
              Max Force: 7000
              Manufacturer: Global
              $245.00 Quantity:
              Part #: 705015
              Max Force: 3600
              Manufacturer: Global
              $199.00 Quantity:
              Part #: 705020
              Max Force: 7000
              Manufacturer: Global
              $274.00 Quantity:
              Part #: 705030
              Max Force: 13300
              Manufacturer: Global
              $594.00 Quantity:
              Part #: 710010
              Max Force: 40
              Manufacturer: Global
              $155.00 Quantity:
              Part #: 710012
              Max Force: 46
              Manufacturer: Global
              $162.00 Quantity:
              Part #: 710015
              Max Force: 135
              Manufacturer: Global
              $171.00 Quantity:
              Part #: 710020
              Max Force: 270
              Manufacturer: Global
              $245.00 Quantity:
              Part #: 715020
              Max Force: 270
              Manufacturer: Global
              $274.00 Quantity:
              Part #: 715030
              Max Force: 500
              Manufacturer: Global
              $594.00 Quantity:
              Part #: 1141-0101
              Max Force: 640
              Manufacturer: Houston
              $326.00 Quantity:
              Part #: 1111-0100
              Max Force: 189
              Manufacturer: Houston
              $169.00 Quantity:
              Part #: 1121-0100
              Max Force: 361
              Manufacturer: Houston
              $230.00 Quantity:
              Part #: 1131-0100
              Max Force: 475
              Manufacturer: Houston
              $278.00 Quantity:
              Part #: 1141-0100
              Max Force: 649
              Manufacturer: Houston
              $320.00 Quantity:
              Part #: 1161-0100
              Max Force: 1558
              Manufacturer: Houston
              $575.00 Quantity:

              47 product(s) found.
