              Turbine

              Characteristics: Quiet, long life, low air consumption.

              Energy Source:  Pneumatic.

              Force Output:  Radial.

              Force Output Range:  25 – 5487 lbs.

              Usage Recommendation: Intermittent operation (2 to 4 hours/day) when considering energy usage and life.

              Description: A rotating unbalanced turbine wheel driven by compressed air produces centrifugal force. Frequency is higher than a ball vibrator. Noise level is less than a ball, roller, or impacting piston vibrator. Frequency and force can be adjusted by varying the air pressure. Turbine wheel rotates on durable ball bearings, extending life as there is no metal-to-metal contact.

              Product Applications:  Wide range of applications in material flow where electric or hydraulic power is not available.



              * Click on the model number below to view accessories specific to that model *

              Category Sort Order
              Model Price
              Part #: 260195
              Manufacturer:
              $150.00 Quantity:
              Model: GT-4
              Part #: GT-4
              Max Force: 45
              Manufacturer:
              $165.00 Quantity:
              Model: GT-6
              Part #: GT-6
              Max Force: 60
              Manufacturer:
              $177.00 Quantity:
              Model: GT-8
              Part #: GT-8
              Max Force: 640
              Manufacturer:
              $211.00 Quantity:
              Model: GT-10
              Part #: GT-10
              Max Force: 520
              Manufacturer:
              $225.00 Quantity:
              Model: GT-10S
              Part #: GT-10S
              Max Force: 440
              Manufacturer:
              $277.00 Quantity:
              Model: GT-13
              Part #: GT-13
              Max Force: 830
              Manufacturer:
              $283.00 Quantity:
              Model: GT-16
              Part #: GT-16
              Max Force: 700
              Manufacturer:
              $300.00 Quantity:
              Model: GT-16S
              Part #: GT-16S
              Max Force: 600
              Manufacturer:
              $377.00 Quantity:
              Model: GT-20
              Part #: GT-20
              Max Force: 1200
              Manufacturer:
              $386.00 Quantity:
              Model: GT-25
              Part #: GT-25
              Max Force: 1100
              Manufacturer:
              $405.00 Quantity:
              Model: GT-25S
              Part #: GT-25S
              Max Force: 1150
              Manufacturer:
              $541.00 Quantity:
              Model: GT-30
              Part #: GT-30
              Max Force: 1350
              Manufacturer:
              $528.00 Quantity:
              Model: GT-36
              Part #: GT-36
              Max Force: 1500
              Manufacturer:
              $559.00 Quantity:
              Model: GT-36S
              Part #: GT-36S
              Max Force: 1650
              Manufacturer:
              $853.00 Quantity:
              Model: GT-40
              Part #: GT-40
              Max Force: 2200
              Manufacturer:
              $722.00 Quantity:
              Model: GT-48
              Part #: GT-48
              Max Force: 2350
              Manufacturer:
              $763.00 Quantity:
              Model: GT-48S
              Part #: GT-48S
              Max Force: 2700
              Manufacturer:
              $1,223.00 Quantity:

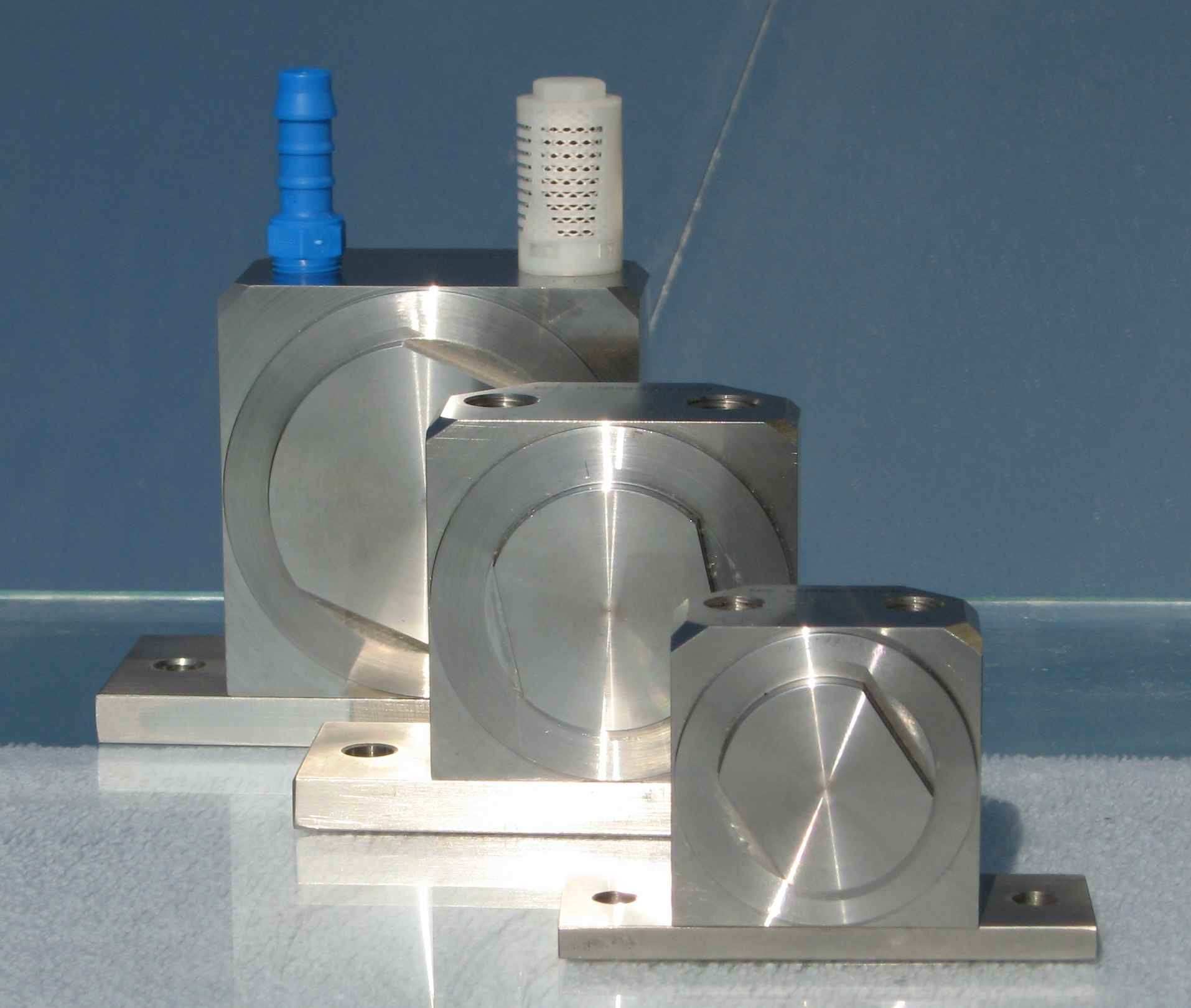

              Part #: GT-10SS Base
              Max Force: 520
              Manufacturer:
              $579.00 Quantity:
              Part #: GT-16SS Base
              Max Force: 700
              Manufacturer:
              $835.00 Quantity:
              Part #: GT-25SS Base
              Max Force: 990
              Manufacturer:
              $1,091.00 Quantity:

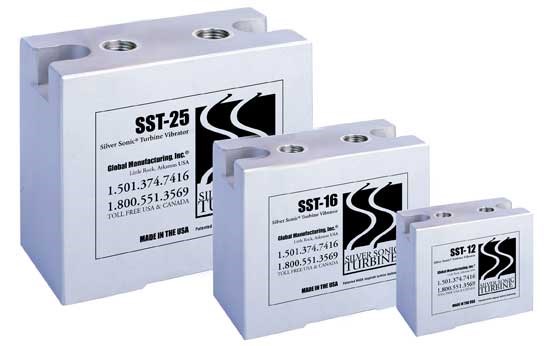

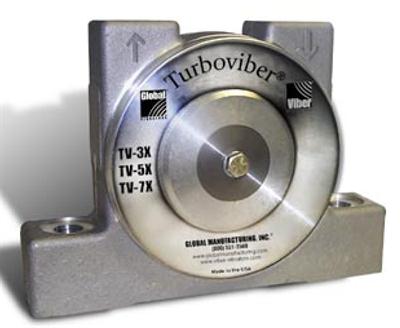

              Part #: 985001
              Manufacturer: Global
              $149.00 Quantity:
              Part #: 985002
              Manufacturer: Global
              $279.00 Quantity:
              Part #: 985003
              Manufacturer: Global
              $289.00 Quantity:
              Part #: 511057
              Max Force: 4175
              Manufacturer: Global
              $600.00 Quantity:

              36 product(s) found.
