              Piston

              Characteristics: Moderate life, rugged construction, simulates a blow from a hammer.

              Energy Source: Air Powered/Pneumatic.

              Force Output: Linear.

              Force Output Range: 5 – 9085+ lbs.

              Usage Recommendation: Some models are designed for intermittent operation (4 – 8 hours per day), others are designed for continuous duty when considering energy usage and life.

              Description: A steel piston reciprocates in a cylinder housing at high frequencies and impacts on harden end plates, while some designs do not hit end plates. This simulates the blows of a hammer and causes any object attached to the vibrator to vibrate at its natural frequency. Internal porting allows the piston to reciprocate without the need for external valves other than to control air supply. Frequency and force can be adjusted by varying the air pressure. Variations of design include:

              • Piston impacts on one end only.
              • Piston is fitted with hard rubber tips to reduce noise of metal-to-metal impact.
              • Piston reciprocates without impacting to reduce noise.
              • Piston and housing are ported so there is only one blow each time a 3-way valve is energized.

              Product Applications: Hopper trailers, dump trailers, coal bunkers, silos, pipelines, and feed hoppers.

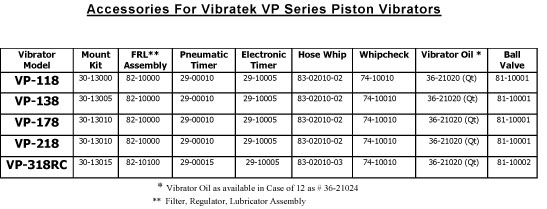

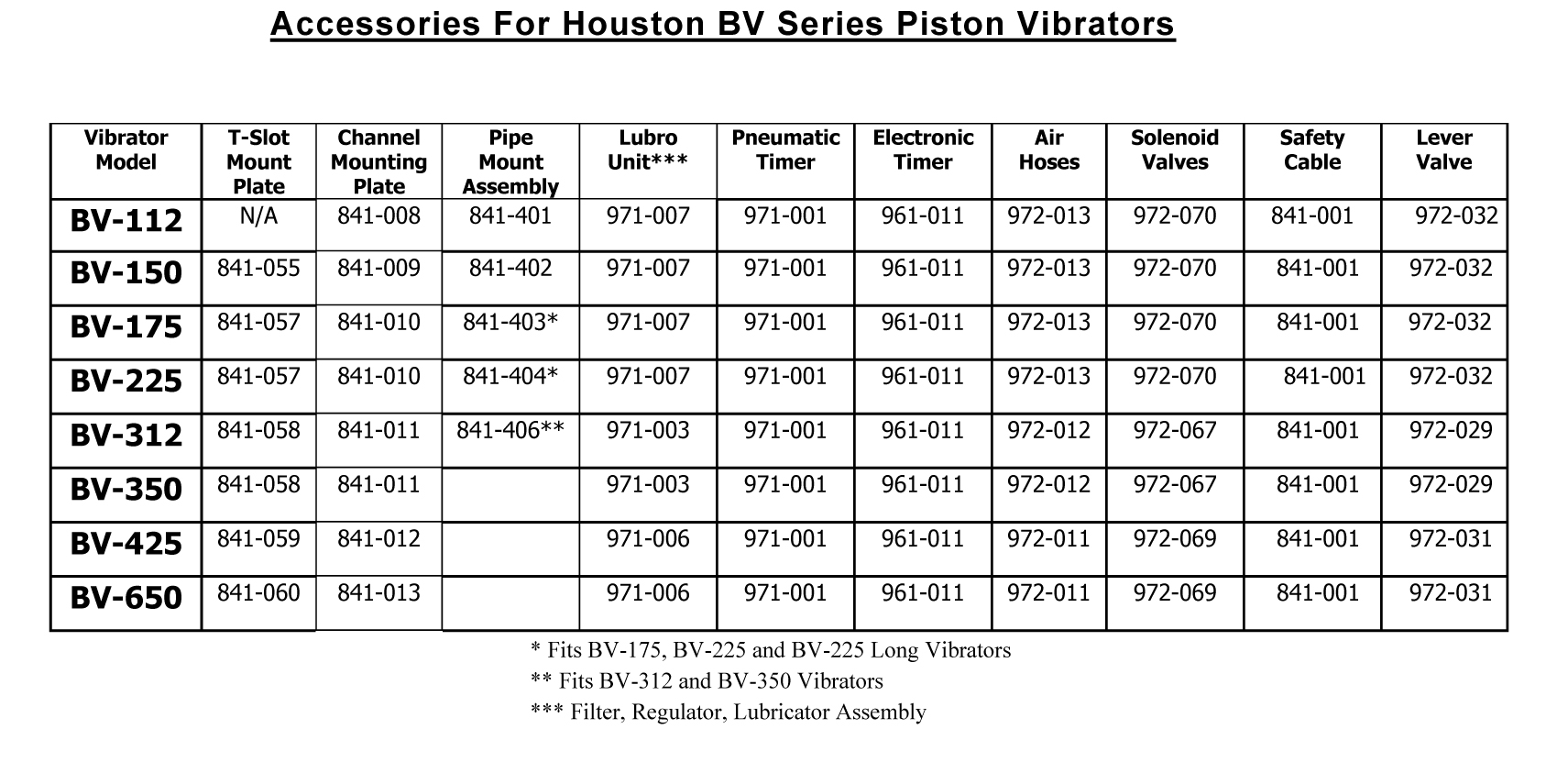

              * Click on the model number below to view accessories specific to that model *

              Category Sort Order
              Model Price
              Model: FP-12S
              Part #: FP-12S
              Max Force: 16
              Manufacturer:
              $178.00 Quantity:
              Model: FP-12M
              Part #: FP-12M
              Max Force: 18
              Manufacturer:
              $194.00 Quantity:
              Model: FP-12L
              Part #: FP-12L
              Max Force: 19
              Manufacturer:
              $204.00 Quantity:
              Model: FP-18S
              Part #: FP-18S
              Max Force: 40
              Manufacturer:
              $216.00 Quantity:
              Model: FP-18M
              Part #: FP-18M
              Max Force: 42
              Manufacturer:
              $234.00 Quantity:
              Model: FPLF-18M
              Part #: FPLF-18M
              Max Force: 42
              Manufacturer:
              $291.00 Quantity:
              Model: FP-18L
              Part #: FP-18L
              Max Force: 46
              Manufacturer:
              $246.00 Quantity:
              Model: FP-25S
              Part #: FP-25S
              Max Force: 94
              Manufacturer:
              $259.00 Quantity:
              Model: FP-25M
              Part #: FP-25M
              Max Force: 113
              Manufacturer:
              $284.00 Quantity:
              Model: FP-25L
              Part #: FP-25L
              Max Force: 134
              Manufacturer:
              $312.00 Quantity:
              Model: FP-35S
              Part #: FP-35S
              Max Force: 234
              Manufacturer:
              $327.00 Quantity:
              Model: FP-35M
              Part #: FP-35M
              Max Force: 243
              Manufacturer:
              $362.00 Quantity:
              Model: FP-35L
              Part #: FP-35L
              Max Force: 240
              Manufacturer:
              $397.00 Quantity:
              Model: FP-50
              Part #: FP-50
              Max Force: 360
              Manufacturer:
              $510.00 Quantity:
              Model: FP-60
              Part #: FP-60
              Max Force: 489
              Manufacturer:
              $547.00 Quantity:
              Model: FP-95
              Part #: FP-95
              Max Force: 962
              Manufacturer:
              $1,276.00 Quantity:
              Model: FPLF-12M
              Part #: FPLF-12M
              Max Force: 18
              Manufacturer:
              $255.00 Quantity:
              Model: FPLF-25M
              Part #: FPLF-25M
              Max Force: 113
              Manufacturer:
              $379.00 Quantity:
              Model: FPLF-35M
              Part #: FPLF-35M
              Max Force: 243
              Manufacturer:
              $480.00 Quantity:
              Model: FPLF-50M
              Part #: FPLF-50M
              Max Force: 360
              Manufacturer:
              $662.00 Quantity:
              Model: FPLF-60M
              Part #: FPLF-60M
              Max Force: 489
              Manufacturer:
              $738.00 Quantity:
              Model: FPLF-95M
              Part #: FPLF-95M
              Max Force: 962
              Manufacturer:
              $1,609.00 Quantity:
              Model: VTL 15
              Part #: VTL 15
              Max Force: 16
              Manufacturer:
              $282.00 Quantity:
              Model: VTL 16
              Part #: VTL 16
              Max Force: 19
              Manufacturer:
              $611.00 Quantity:
              Model: VTL 25
              Part #: VTL 25
              Max Force: 50
              Manufacturer:
              $765.00 Quantity:

              182 product(s) found.

              Page 1 of 8

              <<  1  2  3  4  5  6  7  8  >>
