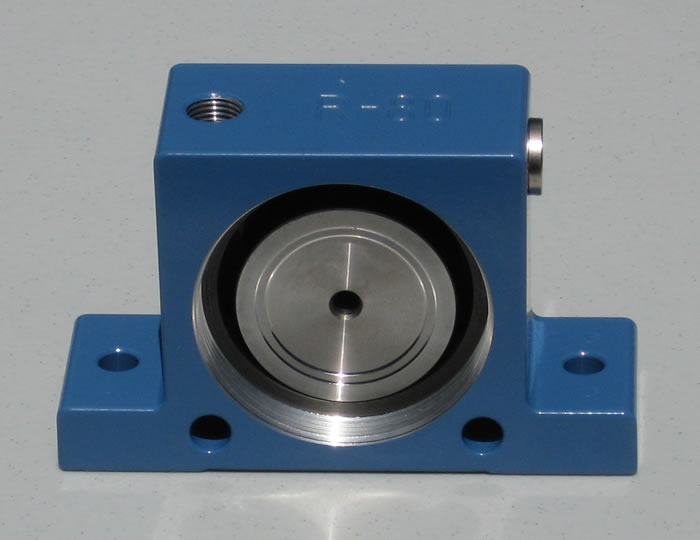

                                                    Medium Duty Roller Vibrator

                                                    Key features vs other roller vibrators:  Aluminum body, low to medium force output.  Not portable.

                                                    Characteristics: Simple, powerful, moderate life, and easily adjusted.

                                                    Energy Source:  Air Powered/Pneumatic.

                                                    Force Output:  Radial.

                                                    Force Output Range:  38 to 3,200 lbs.

                                                    Usage Recommendation: Intermittent operation (2 to 4 hours/day) when considering energy usage and life.

                                                    Description: Pneumatic radial roller vibrator is designed with one rotating roller.  Force outputs are generated at higher frequencies than a comparable ball vibrator. Driven by compressed air, a ring shaped roller rotates inside the vibrator housing. The center line of the roller is slightly offset from the center line of the vibrator housing. This produces a centrifugal force as the roller spins which causes the radial vibration.  The force output is easily adjusted by varying the supply air line pressure.

                                                    Product Applications:  Wide range of applications in both compaction and bulk material flow.

                                                    * Click on the model number below to view accessories specific to that model *

                                                    Category Sort Order
                                                    Model Price

                                                    0 product(s) found.
