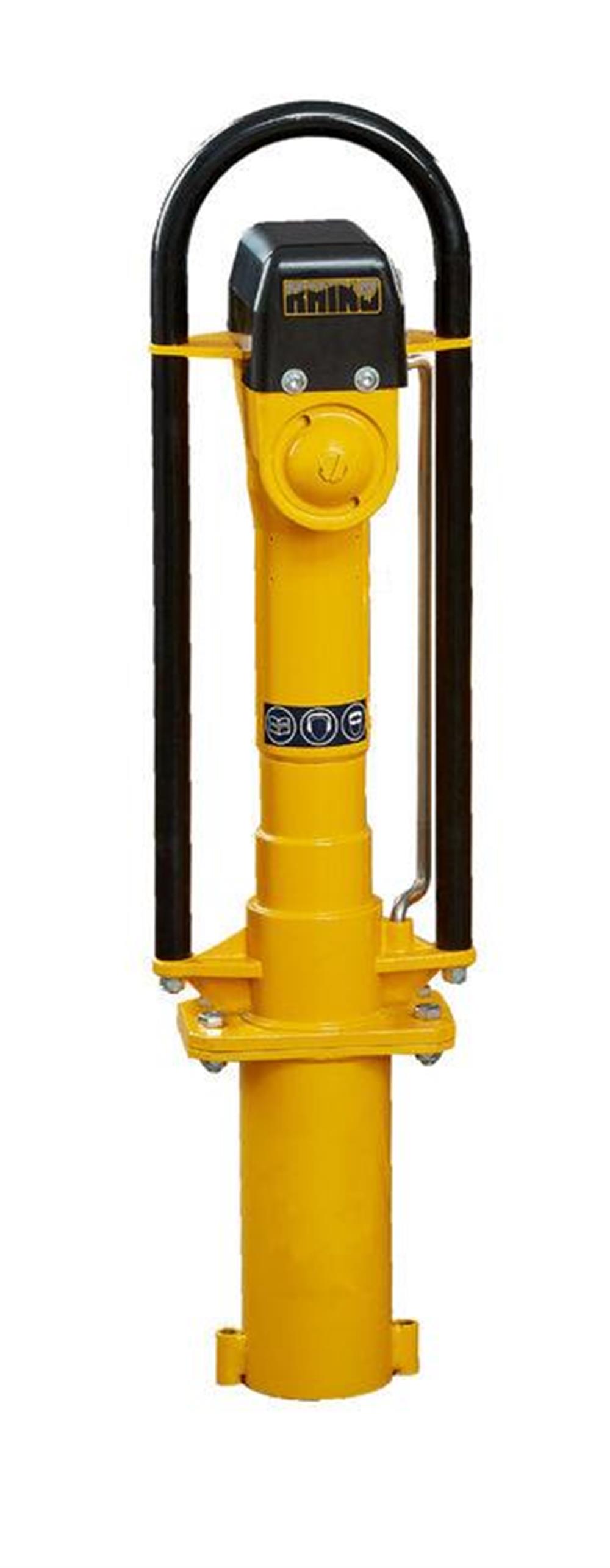

Summary: HPD 60 Medium Duty Hydraulic Post Driver Equipped with:
- One set of 12” x ½” Hydraulic Whip Hoses with flat face Quick Couplings
- Trigger Valve
- 3 ⅞” (98.4 mm) I.D. Master Chuck
Energy Source: Hydraulic power source, requires 8 GPM, and working pressure of 1750 psi.
Weight: 61 lbs (post driver only)
Description: Compact and light weight with performance equal to much larger post drivers. Designed with operator and safety in mind, there is vibration dampening and an ergonomic design that makes it easy to operate and move. Post driver is almost maintenance free due to limited moving parts and a closed hydraulic system. Can be used in all weather conditions, even below freezing!
Product Applications: Fencing, road signs, farm, ranch, forestry, vineyards, guardrail, anchors, tent stakes.
**CVP Pro Tip**
Ensure your project will be successful by buying the minimum required Rhino accessories (note these can be purchased individually or in the bundles listed below).
- Pick a chuck adapter if you drive pipes smaller than 3 ⅞” (98.4 mm), which is the max outside diameter of a pipe that can fit into the Master Chuck that comes standard with the post driver, to increase driving performance and product longevity.
- Pick a drive cap to insert into the pipe to minimize damage during driving.
- Hydraulic Power Pack if you need a power source.
- HPP 14 Flex Hydraulic Power Pack with recoil start (part# 801230).
- HPP 18 Flex Hydraulic Power Pack with electric start (part# 801214).
- HFD Oil Flow Divider to protect post driver when using other hydraulic power sources or skid/steer (part# 801005).
