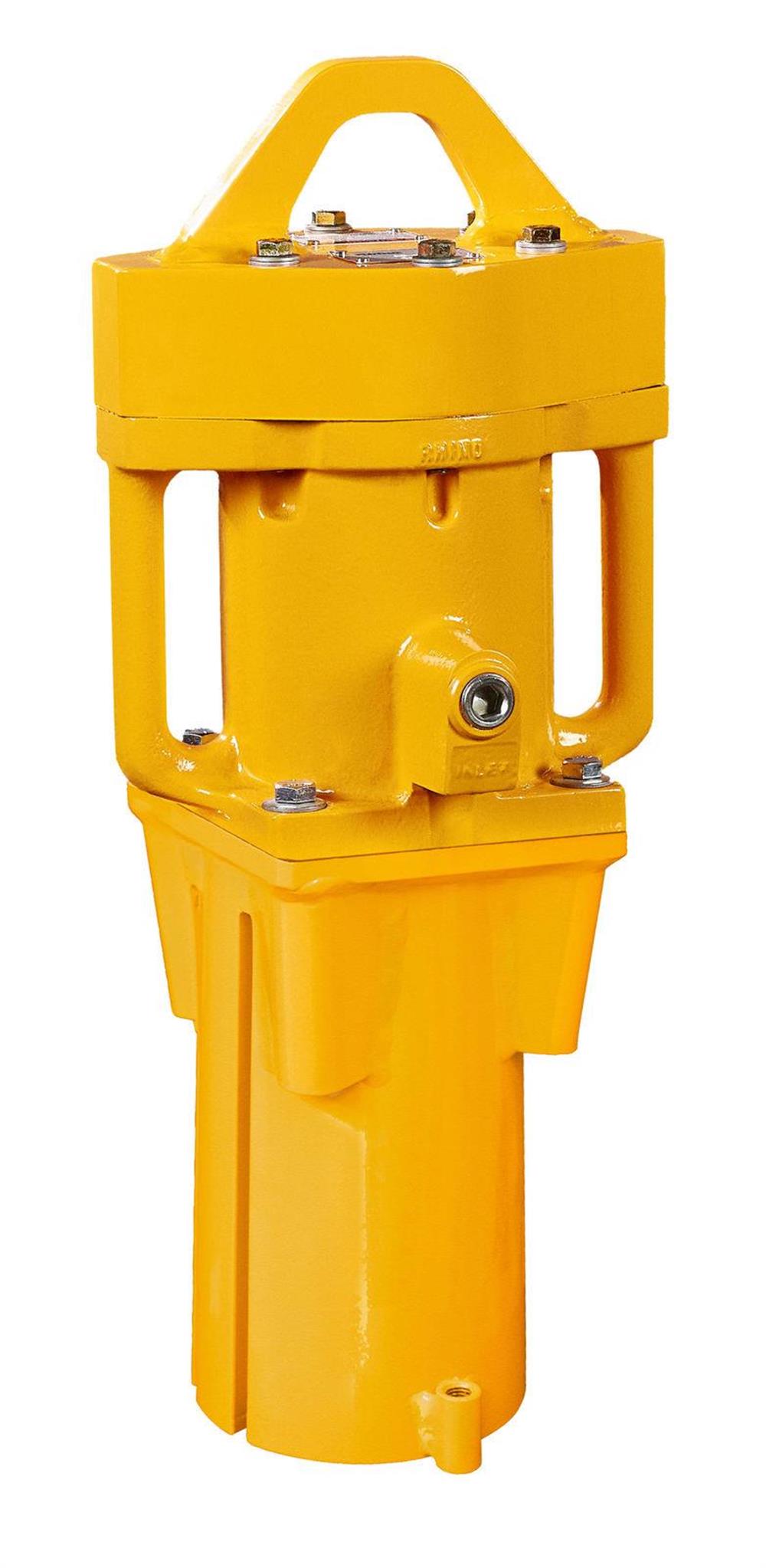

PD-200S Slotted Sheet Pile Post Driver
Summary: Extremely powerful, heavy duty post driver, purpose built to drive 12" wide sheet piling into the earth.
Energy Source: Air Powered/Pneumatic, requires 72 CFM @ 100 psi. ¾” NPT female threaded ports.
Weight: 170 lbs (post driver only).
Description: The most powerful post driver available from Rhino, built to drive 12" sheet pile by utilizing a slot in the master chuck that fits over the sheet piling. Requires the aid of a lifting device. Air inlet, housing, and handle are cast into iron housing built for wear resistance. Alternative chucks for smaller pipes are easily attached with bolts. Piston is an alloy steel with hard chrome plating and strikes 930 times per minute. Requires lubrication in the air supply line.
Product Applications: Up to 12" sheet pile. Can be converted into a standard PD-200 Post Driver by changing out the slotted chuck for a standard PD-200 5.5" master chuck or 7" master chuck.
Recommended Post Driver and Accessories to Get Started:
- Throttle Valve Kit (Part# 600000) to turn post driver on/off.
- Filter Regulator Lubricator with attached Carrier for protection (part# 225005).
