Model: PD-200 Post Driver Bundle - "Utility Kit" with 7" Master Chuck

PD-200 Post Driver Bundle -

Part Number: 71332

Manufacturer: Rhino

Description:

This PD-200 Post Driver "Utility Kit" bundle is designed for a crew to install and remove large posts.

Bundle: The "Utility Kit" bundle includes the following:

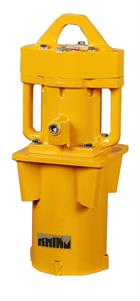

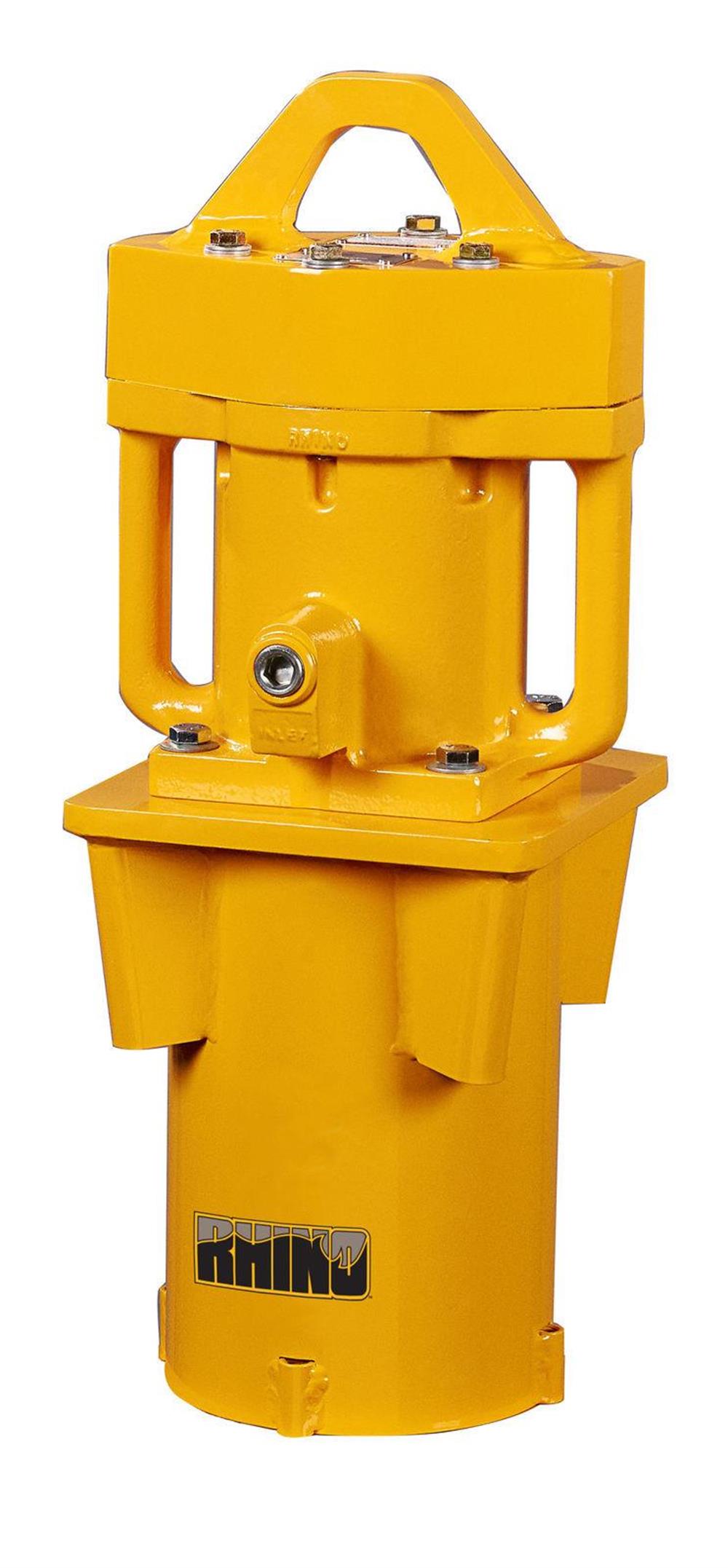

  • Part# 70756: One (1) PD-200 Post Driver with 7" master chuck.

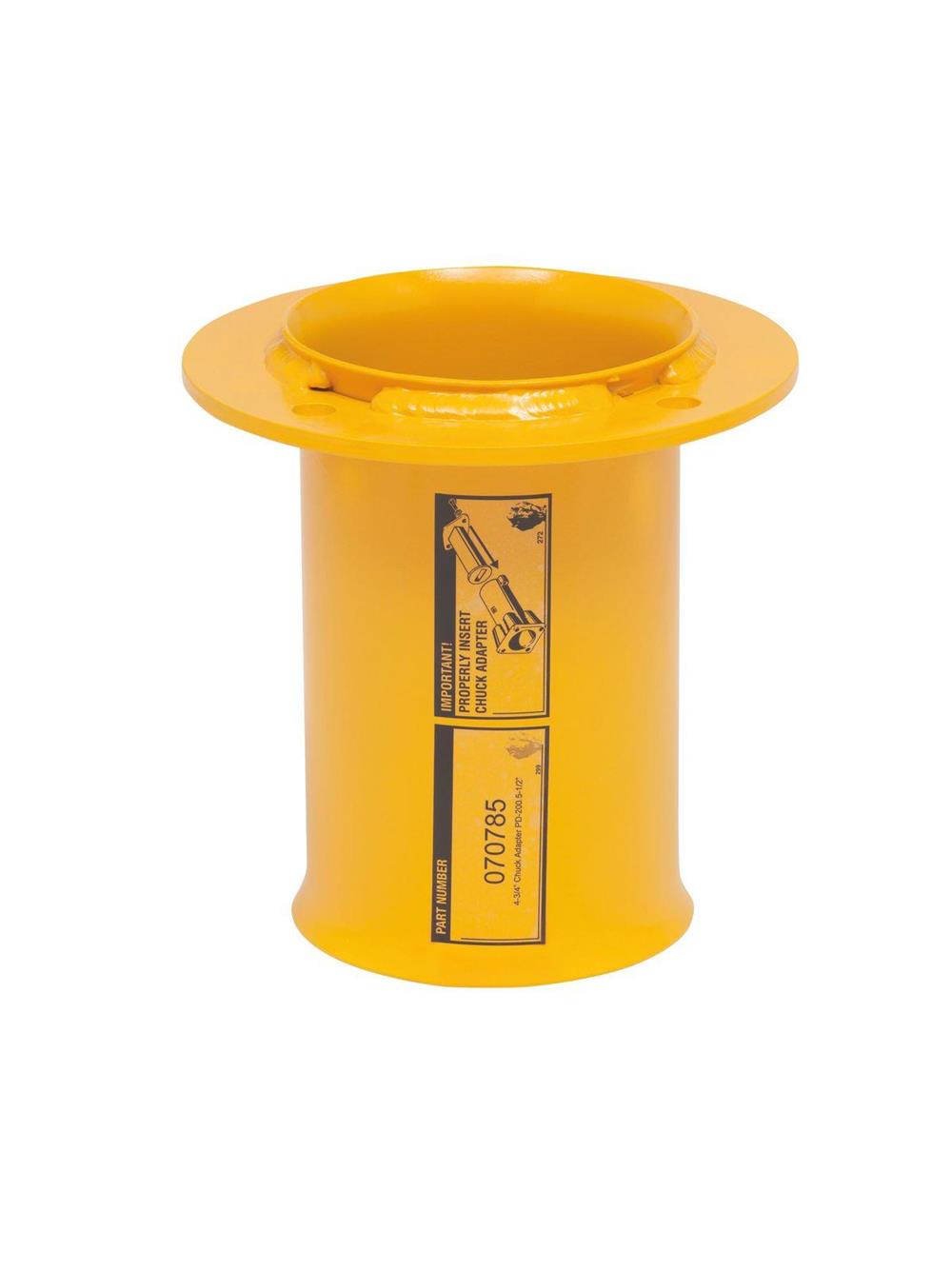

  • Part# tbd: One (1) PD-200 Chuck Adapter selected by customer.
  • Part# 600000: Throttle Valve Kit with 5'9" Hose Whip (hose between Throttle Valve kit and Post Driver).
  • Part# 225005: One (1) Filter Regulator-Lubricator & Carrier.
  • Part# 71199: One (1) 15'2" Hose Whip with Quick Connect Fittings (hose between FRL and Throttle Valve Kit).

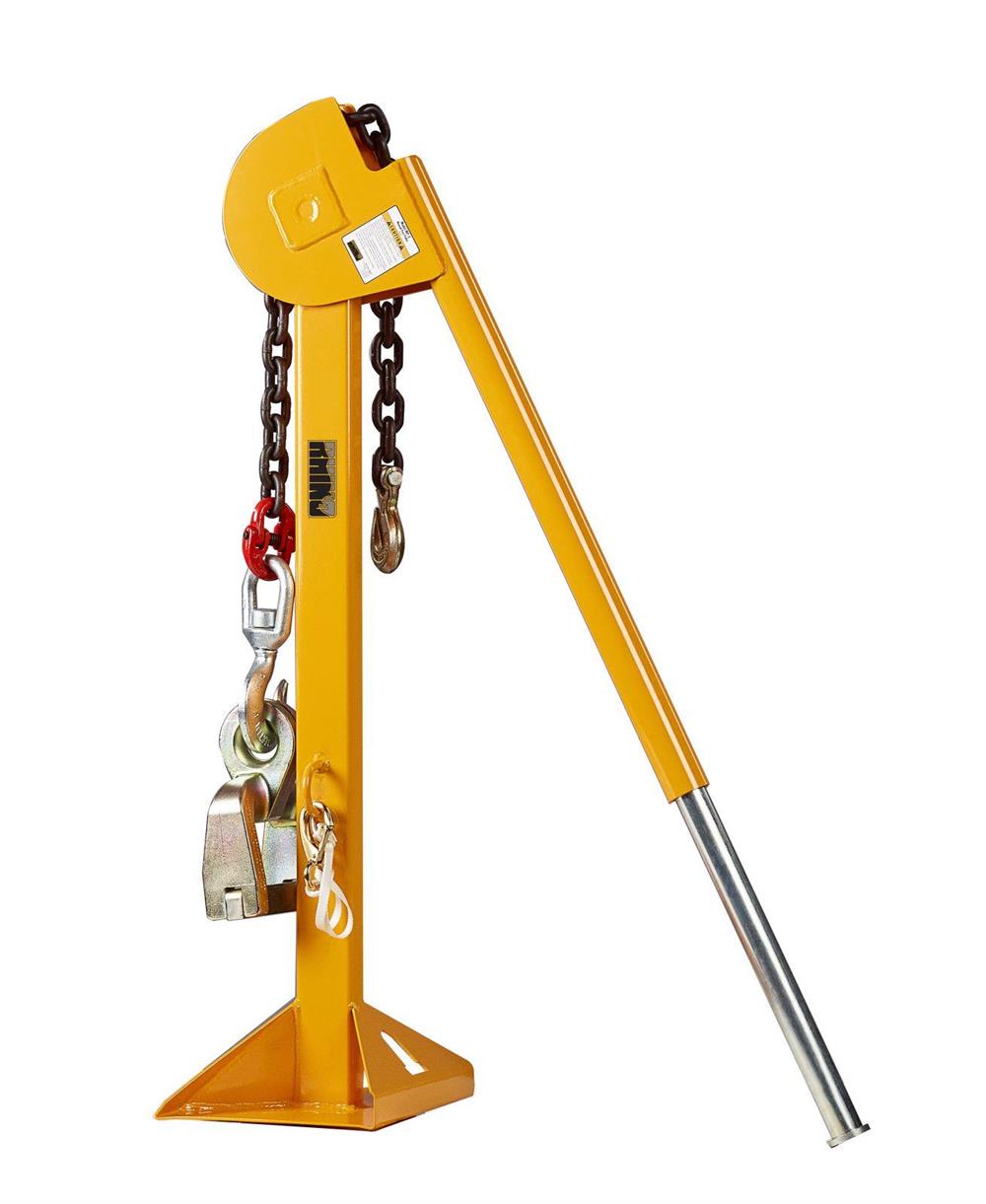

  • Part# 71012: MP 3 Manual Post Puller with chain assembly/grabber (220422/71040).

Customer's own supplied equipment requirements:

  • Energy Source: Air Powered/Pneumatic, requires 72 CFM @ 100 psi. ¾” NPT female threaded ports.
  • Air supply hose between air compressor and FRL.
  • Ability to transport equipment form vehicle to job site (this kit does NOT include the Rhino Transport Cart)

Product Applications: Driving Beams, Round, Square or Rectangular Tubing, Wood Posts, and Stakes of any shape. Capable of outperforming a 90 lb. Jack Hammer, the PD-200 features a 4" piston and 205lb ductile iron casting body.


CVP Pro Tip

Order this bundle online and a CVP sales professional will contact you by phone or email to select your appropriate Chuck Adapter.


***Shipping Charged Separately***

Rhino Post Driver bundles require LTL shipping and will be coordinated with you by a CVP Sales Rep.

Price: $8000.00
