Below are the different types of Cougar industrial vibrators that we offer. Click on a series to begin shopping!
Truck vibrator are practical solutions to material hang ups in dump truck beds or bridging in spreader trucks. The driver operates the vibrator with a push button inside the cab. Truck vibrators are available in 12 Volt DC, 24 Volt DC, hydraulic, and pneumatic power sources. Sealed against dust and moisture, these vibrators provide long life even in adverse conditions.
Truck vibrators improve safety by helping to keep the driver in the cab and off the truck. Truck vibrators improve productivity by reducing the time for manual clean out or by increasing the load of each trip if the bed is not cleaned out each time.

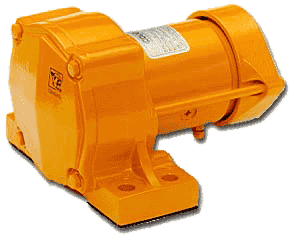

Available power, relative ease of installation and push button control from the cab make 12 Volt DC vibrators an ideal choice for truck vibrators. Multiple sizes accommodate applications from a spreader on the back of a pick up truck to a double axle rear dump truck. When needed the operator pushes and holds the run button in the cab until the load starts to move. Vibrator motors are sealed against dirt and moisture to provide reliable performance in adverse conditions.
View Products

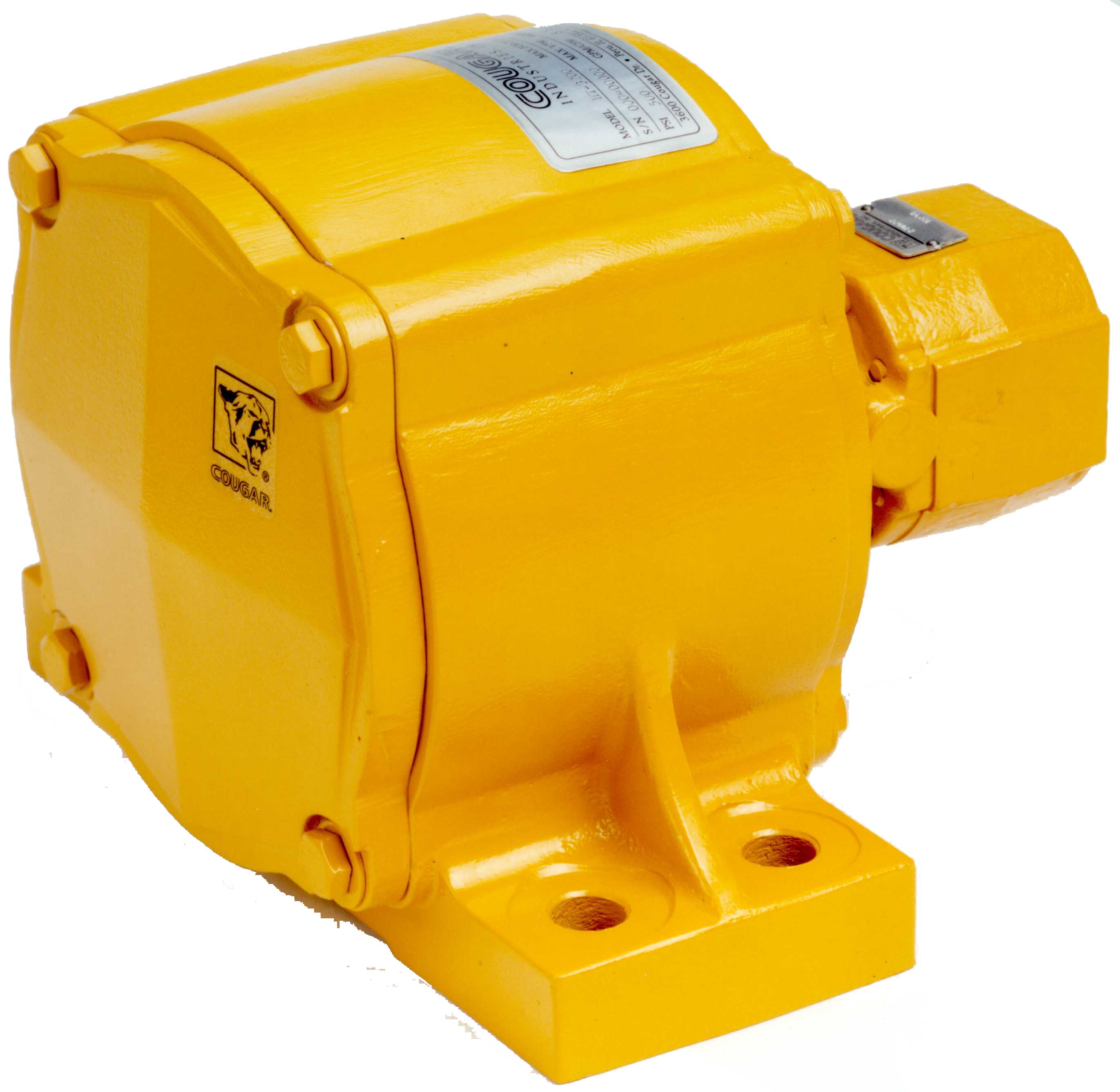

Used in applications where hydraulic power is more readily available than air or electric and/or where easy adjustment of speed and force is needed. Popular with original equipment manufacturers especially those who manufacture equipment with other components which are hydraulically powered. Can also be used as a truck vibrator. Note: Energy costs for hydraulic power is approximately 40% of a comparable electric vibrator.

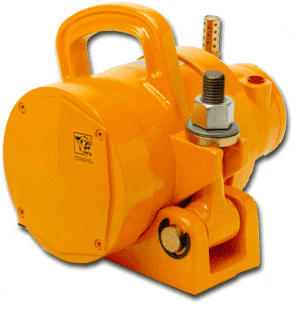

Designed to produce more force for size, weight and cost. Effectively operates in extreme temperature variations and climate conditions. Quiet, efficient air vibrators create the force necessary to remove materials from bins or rail cars. Fully adjustable with a wide range of force output. Compact and lightweight to be mounted where flow problems occur. *(Cradle lug bracket as shown is extra)

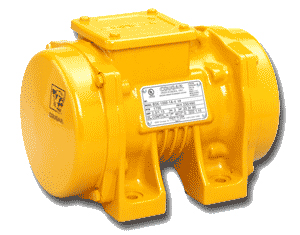

Compact, light-weight, quiet, portable, high frequency, and single phase. High frequency models U1-500 and U1-1600 are ideal to consolidate and help finish precast and cast-in-place concrete in steel forms. Wedge brackets available for quick attachment to forms without the need of tools. Also, ideal for a vibrating table where adjustable amplitude or frequency is required. U1-75 model is available in 115 volt and is rated for continuous duty. U1-500 and U1-1600 models are available in either 115 volt or 230 volt and are rated for intermittent duty. (Wedge bracket as show sold separately) *Male wedge bracket shown with vibrator does NOT fit wedge bracket on railroad hopper cars
